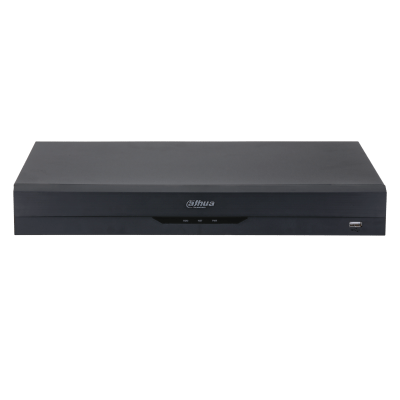

Dahua DH-XVR5216AN-4KL-I3 Video Surveillance Recorder

Dahua DH-XVR5216AN-4KL-I3 Series Overview

Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-4KL-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model.

Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.

Face Recognition

Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database to recognize the person identity.
*Face Recognition conflicts with SMD Plus and Perimeter Protection.

Perimeter Protection

Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.

DH-XVR5216AN-4KL-I3 SMD Plus

With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Scheduled AI

This technology allows multiple AI functions to be set for one channel based on time frames, eliminating the need to manually configure the system to switch between functions each time. Scheduled AI greatly increases efficiency and widens the number of scenarios that the device can be used in.

Smart Dual Illuminators

With Smart Dual Illuminators technology, you can select Smart Illumination Mode for the system to automatically switch between IR mode and white light mode. It allows white light to be turned on when a target is detected by the SMD Plus/Perimeter Protection function of AI-enabled XVR. This significantly reduces light pollution at night. Together with other modes, including IR Mode and White Light Mode, the smart dual illumination technology can meet the requirements of a wide variety of scenes.

One-click Arming/Disarming

With just one click, you can enable or disable alarm linkages to show messages, send emails, output audio alarms and more, through the mobile app and platform.

Customizable Alarm Audio

DH-XVR5216AN-4KL-I3 is Designed for your convenience, the TiOC alarm can be customized to meet your needs. It is flexible, allowing you to directly upload your customized audio through the mobile app and XVR.

AI Coding

Compared with H.265/H.264, AI coding can reduce more than 50% bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle details.

DH-XVR5216AN-4KL-I3 Audio over Coax

The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.

DH-XVR5216AN-4KL-I3 System

• Main Processor Industrial-grade processor
• Operating System Embedded Linux
• Operating Interface Web; Local GUI

Perimeter Protection

• Perimeter Performance AI by Recorder (Number of Channels)
• Advanced Model: 2 channels, 10 IVS for each channel
• General Model: 8 channels, 10 IVS for each channel

Face Detection

Face Attributes Gender; age group; glasses; expressions; face mask; beard

Face Detection

Performance of AI by Recorder (Number of Channels)
2 channels (up to 12 face images/s each channel) )

Face Recognition

Face Database Capacity Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type,
cerificate No., countries & regions and state can be added to each face image

Face Recognition Performance of AI by Recorder (Number of
Channels) 2 channels

SMD Plus

SMD Plus by Recorder 16 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and
lighting condition change

DH-XVR5216AN-4KL-I3 Audio and Video

Analog Camera Input 16 BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect

Alarm

• General Alarm Motion detection; video loss; tampering
• Anomaly Alarm No disk; storage error; disk full; camera offline; IP conflict; MAC conflict
• Intelligent Alarm Face detection; face recognition; perimeter protection
• Alarm Linkage
• Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email
